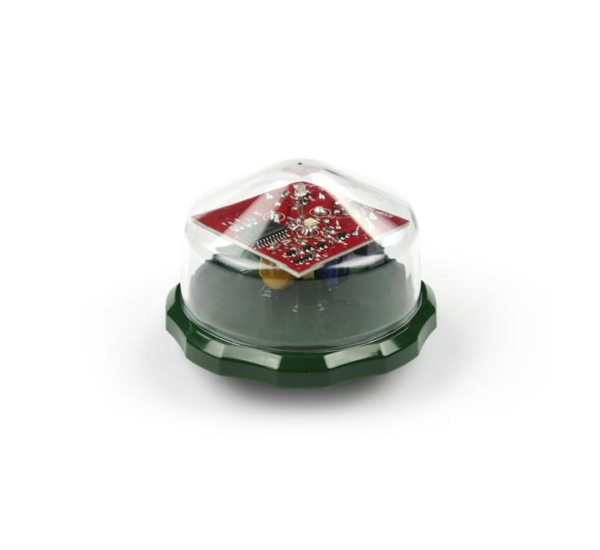

CR CEX 1050 Part Night Photo Cell

The CR CEX 1050 Part night photocell is the ideal

unit for applications where energy saving

is vital, but the cost and complexity of a

remote monitoring and control system is

not justified. It is cost effective to purchase,

simple to install and offers cost savings

from day one of operation.

Specification

Standard Switching Level: 35 Lux `On’ , 35 Lux `Off ‘.

Part-night switching : On dusk – Off 0.00 – On 06.00 – Off Dawn

Switching Differential: 1:0.5

Operating Voltage:  195 – 265 Vac, 50/60 Hz.

Maximum Lamp Load:  7 Amps

Circuit Power Consumption:  < 0.25w.

Operating Temp Range: -20 / +70 Degrees C.

Warranty :  5 Years.

IP Rating : IP65 Dust and water sealed.

Standard Programme: Dusk `On’ / 24.00Hrs,`Off ‘ 05.30 Hrs `On ‘/Dawn `Off ‘

Manufacturing Standard: IS EN ISO 9001:2015

Photocontrol Standard: Applicable parts of BS5972:1980

UMSUG Code:  Awaiting allocation

One-part nema socket mounted
